Wood Pattern Sandwich Panel

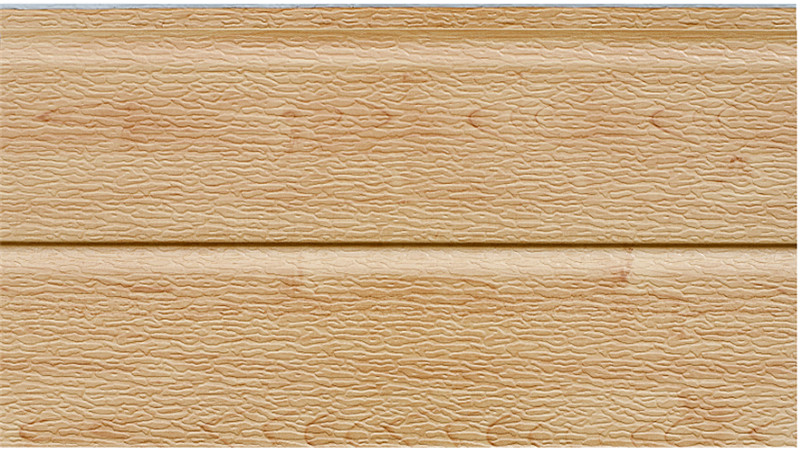

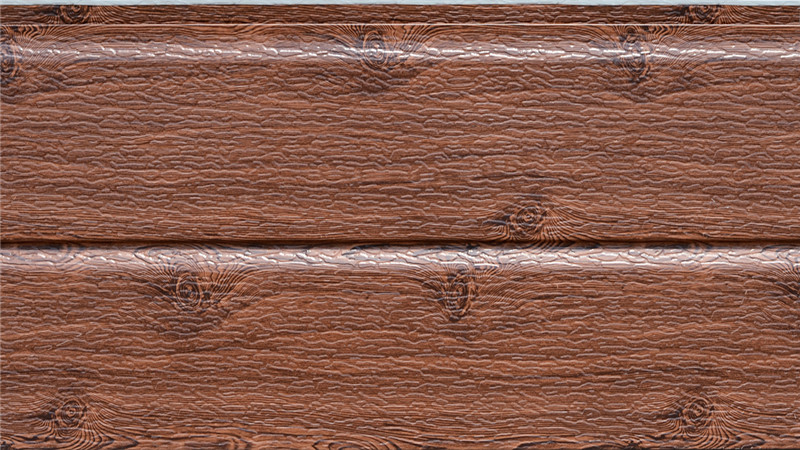

BV7S-001 Wood Pattern Sandwich Panel

facade panels exteriors
BV7S-001 Wood Pattern Sandwich Panel
BV7S-001 Wood Pattern Sandwich Panel
BV7S-001 Wood Pattern Sandwich Panel
BV7S-001 Wood Pattern Sandwich Panel
BV7S-001 Wood Pattern Sandwich Panel

Description

Reviews

Exterior House Wall Panels by BV7S-001 Wood Pattern Sandwich Panel is often using on mobile house, villa house, holiday house.

Structure

· 3 layers:

· Surface: 0.3 mm Al-zn alloy coated steel sheet (Al 55%, Zn 43%)

· Middle: 16mm PU foam

· Back : Aluminium foil paper

· Size: Length (3000mm-6000mm) * Width:380mm * Thickness: 16mm

· Weight: 3.7kgs/sqm

Application

Baikal Sandwich panel is widely used for Exterior wall cladding and Interior wall Insulation and Decoration in the filed of PEB house, Villa, Steel Structure buildings, Hospital, Old Building renovation, School, Library, Supermarket, Plant, Train Station, Residence and so on!

Product Details
Outstanding performance

1. Decoration & beautify

Free combination of different color with different pattern can produce hundreds of styles, make your building much more attractive to your customers.

2. Thermal &; Insulation

Thermal Conductivity: 0.021 W/(m·K)

Thermal resistance: 0.648 (m2·K)/W

3°~5° difference inside & outside after using Baikal sandwich panels.

3. Water proof & Fire proof

It is the basic Characteristic for exterior wall panel, for the surface is Galvanized steel sheet, inner side is Aluminium foil paper, good water resistance & fire resistance.

4. Energy-saving

Energy saving: air condition usage=1/3--1/5 energy before install panel

16mm Baikal sandwich panel =500mm common brick=1200mm mortar

5. No rust, No fade, Long lifetime.

Al 55% + 43% Zn Alloy steel sheet on the panel surface! This good chemical performance identified by World & Steel Institute make the sandwich panel lifetime more than 40 years.

6. Light weight

Weight 3.7kgs/sqm,  lighten building self-weight, so very hot selling for steel structure building, PEB house.

7. Easy installation

Just insert one by one and fix by screw, very easy!

About 30 sqm per person per day average, so widely used for speed house.

8. Eco-friendly

Dry construction, no need water, no need concrete,  no dust, no, Pollution, no noise.

9.  Easy Maintenance

Self-cleaning by rain or water

PU Sandwich Panels

We can provide the following 13 pattern PU sandwich panels

1. Small Brick Pattern Sandwich Panel

2. Big Brick pattern Sandwich Panel

3. Stone Pattern Sandwich panel

4. Tile Pattern Sandwich Panel

5. Mosaic Pattern Sandwich Panel

6. Marble Pattern Sandwich Panel

7. Wood Pattern Sandwich Panel

8. Wave Pattern Sandwich Panel

9. Small Stone Pattern Sandwich Panel

10. Brick Pattern Sandwich Panel

11. Big Stone Pattern Sandwich Panel

12. Flat Pattern Sandwich Panel

13. Ripple Pattern Sandwich Panel

Performance test

Baikal Sandwich panel Physical Testing Data

Testing Items Unit Technical Standard Testing Result Testing Method
Thermal conductiveity ( core material), W/(m*k) ≤ 0.040W/(m*k) 0.024 GB/T 10297-1998
Comperssive strength Kpa ≥ 30Kpa 52.7 JG149-2003
Water absorption % ≤ 424% 415 JG149-2003
Density of the panel ( three layers) kg/m2 ≥ 1.7*100kg/m2 1.821*100 GB/T 6343-1995
Bending resistance under 0.5KN mm ≤ 18.3mm 13.3 GB/T 9341-2000
Cementation strength Mpa > 0.1Mpa 0.18 JG 149-2003
Smog resistance h / color is not changed and there is no spot of erosion GB 5928-1986
Weather resistance h / There is no damage on the surface and color changed from lever 4-5 GB/T 17657-1999

Baikal Sandwich Panel Flame Retardant of Polyurethance Foam

Testing Items Unit Testing Result Testing Method
Wind -resistance data kPa 8 JG 149-2003

Baikal Sandwich Panel  Heat Insulation Comparision

Testing Items Thermal Conductivity The Thickness Testing Result
Cement 0.13 7.23cm
Lumber 1.1 61.2cm
Gypsum Board 0.5 27.8cm
Common Outerwall 0.15 8.34cm
Baikal Sandwich Panel 0.018 1cm Best result

Customer Praise:

New customer from Mauritius, after finish installation our wall panel, their customer is very satisfied with this new products.

FAQ:

1、Are you factory? Where is the location?
Yes, we are a real professional manufacturer, not agent or distributor.
Our factory is one hour driving from Qingdao City, Shandong province. China Middle Part.
2、What’s the payment term?
30% TT as down payment before production, 70% TT before delivery against products photo and packing list.

What the delivery term?
Within 15 days to delivery after get your down payment
